Wall-Mounted Universal Encoder & Modulator

Model No: GQ-3641

Porduct Overview:

Gospell’s GQ-3641 wall mounted universal encoder and modulator is a cost-effecitve digital video solution for small area broadcast over-the-cable/air application.

Perfect for where different transmission standards are required, as well as when local video encoding and distribition is needed. Its compact and universal structure, means that GQ-3641 is ideal for environments, such as local communities, school and college campus, business and almost any public place where local broadcast and digital signage is required.

Extremely compact, measuring only 6.7in, 17cm (w) x 2.0in, 5cm (H) x 4.4in, 11cm (D), GQ-3641 combines the following: MPEG-2 SD/MPEG-4 AVC HD encoder, DVB-C, DVB-T, ISDB-T and ATSC modulator, RF mixer, all into a wall-mounted, metal housing. GQ-3641 is suitable for any indoor environment and being universal, can be installed in any country.

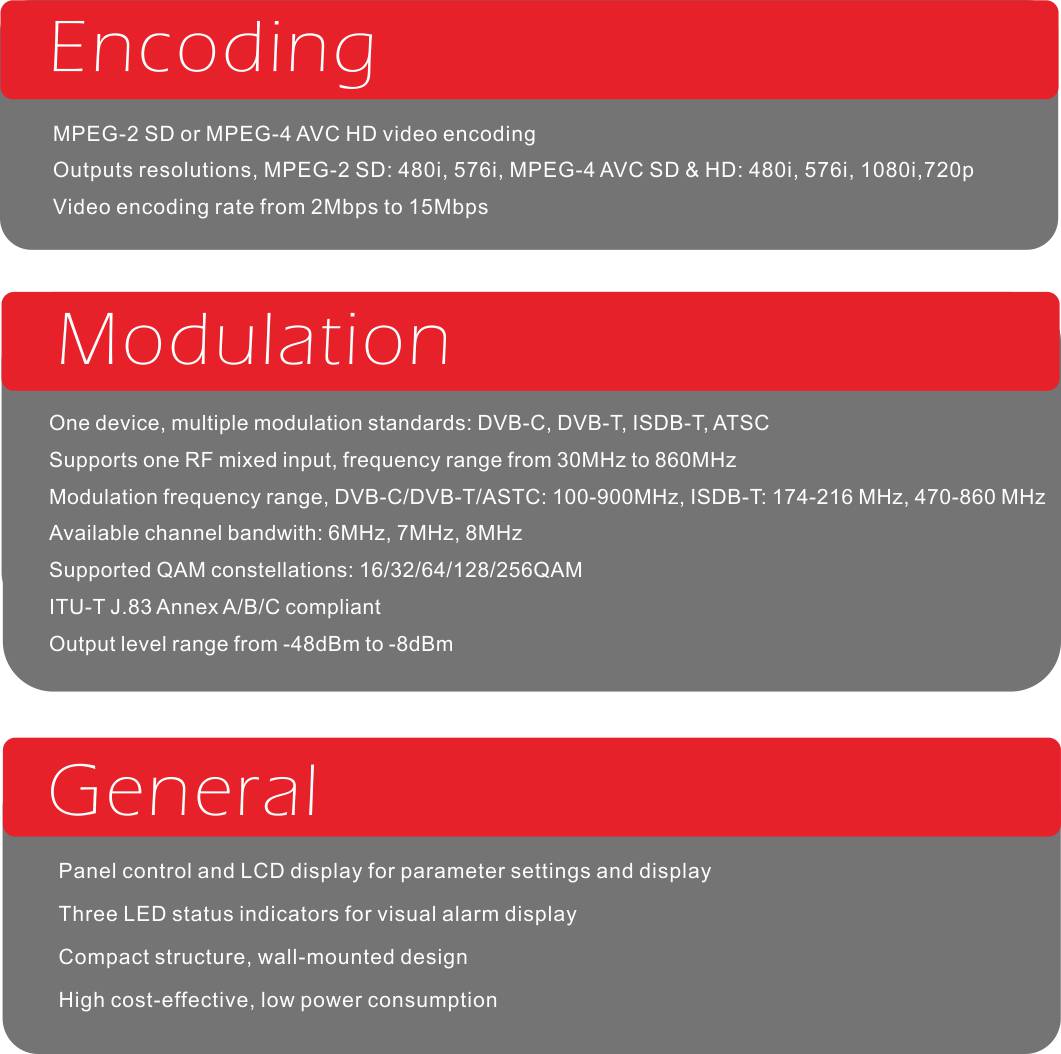

Main Features:

Technical Specifications:

For More Information

please visit our website: or contact your local sales representative:
