Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box

    Buy cheap Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box from wholesalers

    Buy cheap Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box from wholesalers
    • Buy cheap Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box from wholesalers
    • Buy cheap Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box from wholesalers
    • Buy cheap Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box from wholesalers

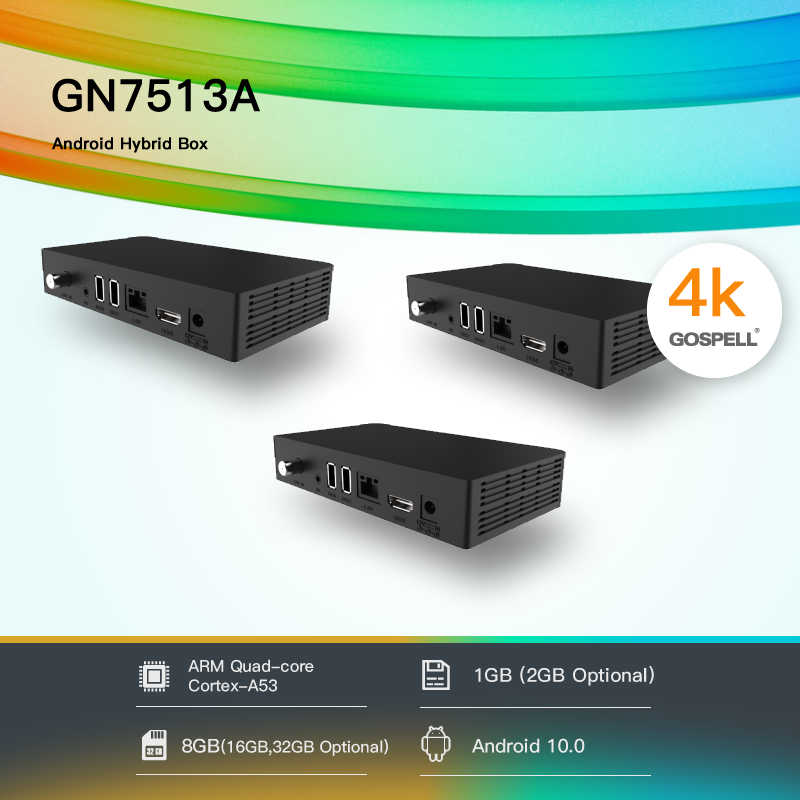

    Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box

    Ask Lasest Price
    Brand Name : GOSPELL
    Model Number : GN7513A
    Certification : ISO9001,FCC,CE
    Price : US$27
    Payment Terms : TT/LC
    Supply Ability : 100.000Pcs/Month
    Delivery Time : Within 8-14 Days
    • Product Details
    • Company Profile

    Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box

    Smart TV Box Hybrid DVB S2 STB Quad Core 4K Android 10.0 Allwinner H6 2GB RAM 32GB ROM 2.4G/5GHz WiFi Box


    Technical Specification


    Product Description
    Quad Core HD TV Box support DVB S2
    Android base TV system
    IPTV, VOD, KODI, Youtube, Redtube
    H.264 1080p Video encoding
    H.264/H.265 decoding up to 4K×2K@60fps
    Basic parameters
    SystemSoC: Allwinner H616
    CPU: ARM Quad-core Cortex-A53
    GPU: G31 supports OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, OpenCL 2.0
    DRAM: 1GB (2GB Optional)
    Flash: 8GB(16GB,32GB Optional)
    OS: Android 10.0
    NetworkRJ45 Interface 10M/100M adaptive
    Build in Wi-Fi 2.4GHz 802.11 b/g/n(5GHz, BT Optional )
    TunerTuner+DEMO: RS6060
    Frequency Range: 950~2150MHZ
    Input Level: -65~-25dBm
    Input impedance: 75Ω
    I/O
    RFRF IN
    Video OutputHDMI, AV
    NetworkRJ45, Buildin Wi-Fi antenna
    Peripheral InterfaceUSB2.0 x2
    Power InterfaceDC 12V
    Other InterfaceFront panel: IR receiver, LED indicator
    Media
    VideoDecoder:
    Supports video decoding up to 6K@30fps
    Supports multi-formats:
    -H.265 Main10@L5.1 up to 4K@60fps,or 6K@30fps
    -VP9 Profile 2 up to 4K@60fps
    -AVS2 JiZhun 10bit Profile up to 4K@60fps
    -H.264 BP/MP/HP@L4.2 up to 4K@30fps
    -H.263 BPupto 1080p@6ofps
    -MPEG-4 SP/ASP@L5 up to 1080p@60fps
    -MPEG-2 MP/HL up to 1080p@60fps
    -MPEG-1 MP/HL up to 1080p@60fps
    -Xvid up to 1080p@60fps
    -Sorenson Spark up to 1080p@60fps
    -VP8up to 1080p@60fps
    -AVS/AVS+JiZhun Profile up to 1080p@60fps
    -WMV9/Vc1 SP/MP/AP up to 1080p@60fps
    -JPEG HFIF file format up to 45MPPS
    AudioDecoder:
    Two audio digital-to-analog(DAC) channels
    - Supports 16-bit and 20-bit sample resolution
    - 8 kHz to 192 kHz DAC sample rate
    - 95±2dBSNR@A-weight,-80+3dB THD+N, output Level more than 0.55Vrms
    One audio output
    - One differential LINEOUTP/N or single-ended LlNEOUTL/R output
    Supports Dynamic Range Controller(DRC) adjusting the DAC playback
    One 128x24-bits FIFO for DAC data transmit
    Programmable FIFO thresholds
    DMA and Interrupt support(AC-3 Optional )
    Photo FormatHD JPEG/BMP/GIF/PNG/TIFF
    Features
    Digital TVFully compliant with HD DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
    4KH.265 decoding up to 6K@30fps max resolution output
    Network StreamingHTML5, RTSP, HLS, Smooth streaming
    Multi-screen interactiveMiracast, DLNA and Airplay
    System UpgradingUpgrading via USB disk or internet
    Local Media PlaybackVideo/Audio/Picture
    External StorageUSB storage max to 32GB (FAT32/NTFS)
    GamesAndroid 2D/3D games
    APPKODI(XBMC),Facebook, YouTube, Skype, Google play etc.
    Other parameters
    Input VoltageDC IN 12V/1A
    Power Consumption6W Max
    Operation Temperature0~40, Humidity<95%
    Physical characteristicsSize: 139mm*85mm*28mm
    Weight: 326g
    Material: plastic
    Proposed AccessoryRemote control and Battery(Optional), User manual(Optional), Power adapter, AV cable(Optional), HDMI cable

    More Details



    Company Profiles


    Welcome to Gospell Digital Technology Co., Ltd

    The brands GOSPELL(DTV), XIPOINT(Satellite TV), GONTCERA(GONTCERA Ceramics) have strong brand advantages over others and this company possesses a highly competitive sales and marketing network in the relevant fields.
