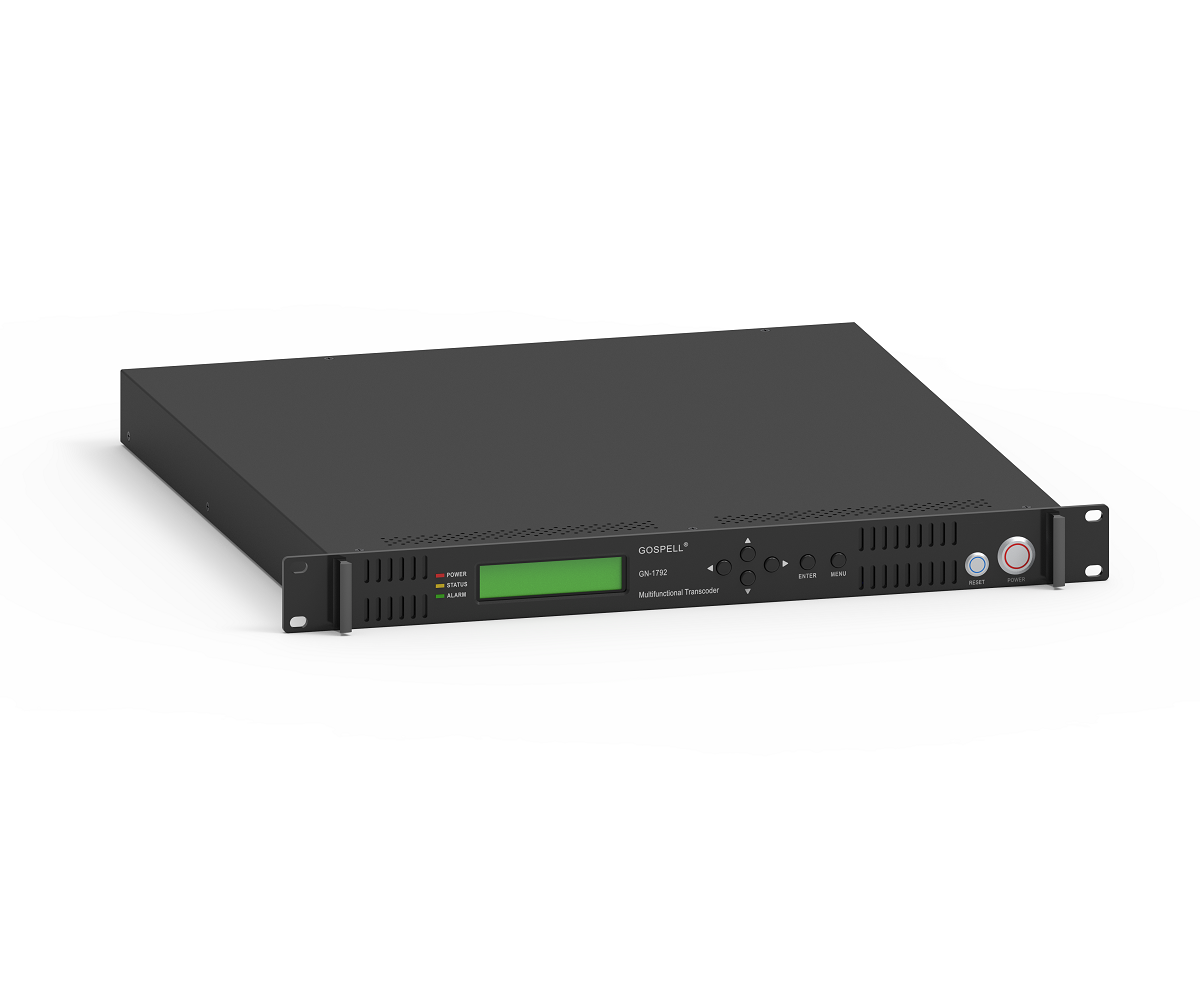

    IPTV 4K Digital TV Broadcast HEVC AVC Ultra Multi Channel UHD OTT DVB Transcoder

    Ask Lasest Price
    Brand Name : GOSPELL
    Model Number : GN-1792
    Certification : ISO9001,FCC,CE
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    IPTV 4K Digital TV Broadcast HEVC AVC Ultra Multi Channel UHD OTT DVB Transcoder

    Digital TV Broadcast IPTV 4K Hevc Avc Ultra Multi-Channel UHD Ott DVB Transcoder

    Product Overview

    • Gospell HEVC/AVC ultra multi channel UHD OTT/DVB transcoder can flexibly support DVB live broadcast and streaming media transcoding

    • It supports H.264/H.265 mutual transcoding, can effectively reduce the video bit rate, and supports traditional equipment

    • It supports ultra multi channel, which can greatly reduce the cost of single channel usage and maintenance

    • It is suitable for traditional TV stream transcoding and Internet stream media, cloud game, AR/VR, video conferencing, home monitoring, social video call, network realtime live broadcast and other application scenarios

    Highlights

    • Transcoding: Converts H.265/H.264 inputs into H.265/H.265 outputs

    • 4KP60: Up to 4K P60 transcoding (H265->H264 only, others up to 4KP30)

    • High-density: 1U model can support 4-channels of 4K programs transcoding or 28-channels of full HD programs transcoding or 128-channels of SD programs transcoding. The cost-effectiveness enables service delivery on any budget

    • Flexibility: Supports transcoding from 1 input to multiple outputs with different resolutions

    • Supports multiple IP protocols including UDP, RTP, HLS, RTSP and RTMP

    • Supports logo and graphics insertion, subtitle processing, and translucent watermark insertion

    • Supports SPTS/MPTS

    • Supports video scaling: video up-scaling and down-scaling within 4K resolution

    • Supports HDR10 and HDR10+

    • Supports audio passthrough of various audio formats including AC3

    • Supports audio transcoding including MPEG-1 Audio Layer II, MPEG-2 Audio, AAC-LC, HE-AAC v1/v2, MP3

    • Supports up to 112 input streams and 112 output streams

    • Low-power transcoding solution: 80% lower power consumption than graphics card solutions

    • Supports FEC

    • Stable 7X24 hours work, Web management

    IPTV 4K Digital TV Broadcast HEVC AVC Ultra Multi Channel UHD OTT DVB Transcoder

    IPTV 4K Digital TV Broadcast HEVC AVC Ultra Multi Channel UHD OTT DVB Transcoder

    IPTV 4K Digital TV Broadcast HEVC AVC Ultra Multi Channel UHD OTT DVB Transcoder

    Live & Steaming

    Suitable for various application scenarios such as traditional TV live broadcast service and Internet streaming media. Supports 1:1 and 1:N transcoding.
    High Density, Ultra-High Multiple Channels

    Supports 4 channels of 4K programs transcoding or 28 channels of full HD programs transcoding in 1U chassis.
    HEVC & UHD

    Converts H.265/H.264 input into H.265/H.264 output with UHD/HD/SD resolution.
    Low Cost

    Effectively reduces the cost, the more number of channels with the lower cost per channel.

    Application Scenarios


    DVB System
    Satellite down- link
    H.265

    4K

    H.264

    4K

    DVB System
    Satellite down- link
    H.265

    4K

    H.264

    1080P

    Steaming Media

    IP

    H.265

    4K

    H.265/H.264
    4K/H.265: OTT STB
    2K/H.265: Mobile 1080P/H.264: Low end STB

    Steaming Media

    IP

    H.264

    4K

    H.265/H.264
    4K/H.265: OTT STB
    2K/H.265: Mobile 1080P/H.264: Low end STB

    Resolution Conversion Matrix



    Video Resolution Conversion Matrix
    Video Output

    4Kp60

    4Kp30

    1080p60

    1080p59.94

    1080p50

    1080p30

    1080p29.97

    1080p25

    1080p24

    720p60

    720p59.94

    720p50

    576p50

    480p60
    Video Input 4Kp60 Y Y Y Y Y Y Y Y Y Y Y Y Y Y
    4Kp30 Y Y Y Y Y
    1080p60 Y Y Y Y Y Y Y Y Y Y Y Y Y Y
    1080p59.94 Y Y Y Y Y Y Y Y Y Y Y Y Y Y
    1080p50 Y Y Y Y Y Y Y Y
    1080p30 Y Y Y Y Y
    1080p29.97 Y Y Y Y Y
    1080p25 Y Y
    1080p24 Y
    720p60 Y Y Y Y Y Y Y Y Y Y Y Y Y Y
    720p59.94 Y Y Y Y Y Y Y Y Y Y Y Y Y Y
    720p50 Y Y Y Y Y Y Y Y
    576p50 Y Y Y Y Y Y Y Y
    480p60 Y Y Y Y Y Y Y Y Y Y Y Y Y Y

    Technical Specifications

    IP Input/Output
    Interface 1 x 100/1000 Base-T Ethernet
    Physical Type RJ-45

    Bitrate
    Input: 800Mbps
    Output: 1000Mbps
    Protocol IPv4/ARP/ICMP/IGMPv1/IGMPv2/IGMPv3
    UDP, RTP, RTP, HLS, RTSP, RTMP
    Steam Number Input: ≤112
    Output: 112, Support SPTS/MPTS

    Video Processing
    Video Processing Encode/Decode
    Transcoding Format H.264/H.265->H.264/H.265

    Video Profile/Level
    H.264 BP/CBP/MP/HP10 L6.2;
    H.265 Main/Main10 L6.2 Main-Tier
    Bitrate One module:64 kbps - 700 Mbps
    HDR HDR10 and HDR10+

    Subtitle
    EIA CEA-708 closed captioning support for
    H.264 and H.265 encoding and decoding
    Audio Processing

    Audio Processing
    Decode and encode
    Pass through
    Encode MPEG-1 Audio Layer II, MPEG-2 Audio, AAC-
    LC, HE-AAC v1/v2, MP3
    Decode MPEG-1 Audio Layer II, MPEG-2 Audio, AAC-
    LC, HE-AAC v1/v2, MP3
    Sample Rate 8kHz - 192 kHz
    Level Control Support
    Delay Control Support
    Sample Rate Conversion Support
    AC3 Bypass Support
    OEM
    OEM Function Support Gospell standard OEM function
    OEM Import Support to import OEM file
    Web Management
    Management Standard web management
    Users Sper administrator, administrator, operator

    Front Panel
    View device name/model/serial number Default parameters
    Panel Function Factory settings
    View/Clear Alarm
    Set device management IP address

    Power
    Voltage AC 100 - 240V / 50-60 Hz
    Power Consumption <=100W
    Backup Hot backup power supply (Optional)

    Environment
    Working Temperature +5ºC - 45ºC
    Storage Temperature -30 - 70ºC
    Working Humidity 10% -90%
    Physical
    Dimension(WxHxD) 450*430*44 (LXWXH) mm
    Weight 7.2 Kg
