    IP65 Solar Energy Storage System 3kW - 10kw Solar Hybrid Inverter

    Ask Lasest Price
    Brand Name : Gospell
    Certification : IEC62109-1, IEC62109-2
    Price : US$290/pc
    Payment Terms : T/T, Western Union
    Supply Ability : 3000 Piece/Pieces Per Month
    Delivery Time : 8-12 working days
    • Product Details
    • Company Profile

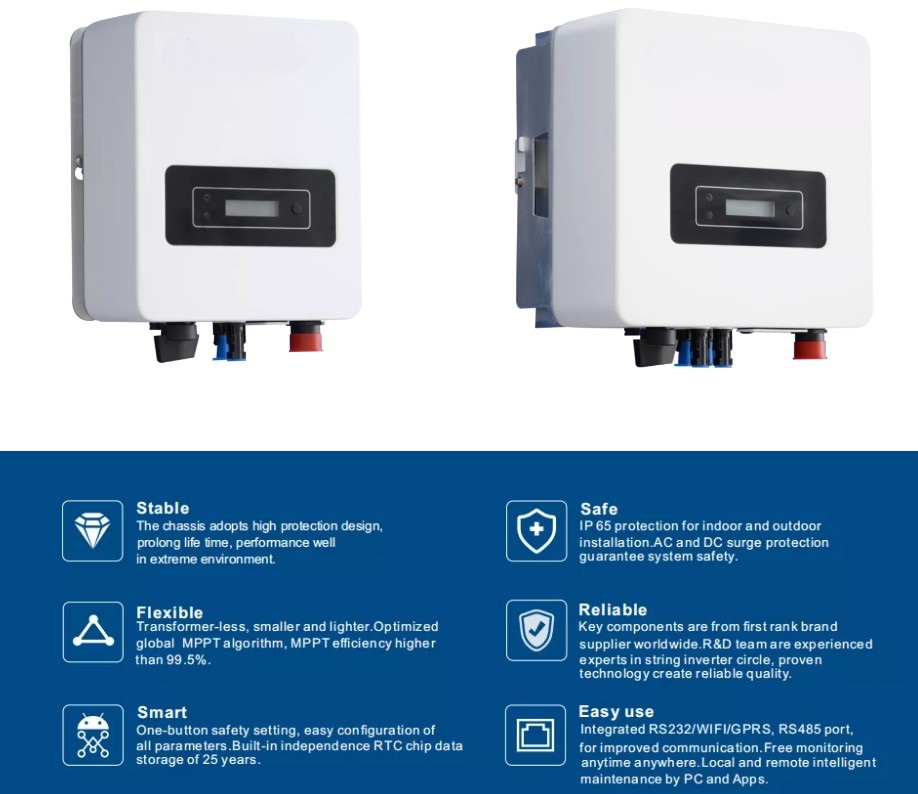

    IP65 Solar Energy Storage System 3kW - 10kw Solar Hybrid Inverter

    Inversor Hibrido On Off Grid De 3000w 3.6k 5000w 5 Kw 6000w 10kw Solar Inverters


    Product details​​

    Technical Data
    Mercury-3K-S0
    Mercury-5K-S0
    Max. DC input power
    3900W
    6500W
    Max. DC input voltage
    550V
    550V
    Operation voltage range
    80V-540V
    80V-540V
    Number of independent MPPT / strings per MPPT
    1/1
    2/1+1
    MPPT max. current
    13A
    13A
    AC Output Data
    Rated output power
    3kW
    5kW
    Max. output power
    3.3kW
    5.5kW
    Rated output voltage
    230V/180V-280V
    Rated output frequency
    50Hz,60Hz/±5Hz
    Rated output current
    13.1A
    21.8A
    Max. output current
    14.5A
    24A
    Power factor
    -0.8~+0.8(adjustable)
    THDi
    <3%(Nominal Output)
    Grid system pattern
    L+N+PE
    Efficiency
    Max. efficiency
    97.6%
    98.2%
    Europe efficiency
    96.8%
    97.5%
    Protection
    Input DC switch
    yes
    Input over current protection
    yes
    DC reverse polarity protection
    yes
    Output over voltage protection
    yes
    Output over current protection
    yes
    Anti islanding protection
    yes
    Insulation impedance protection
    yes
    RCD detection
    yes
    General Data
    Dimensions(W/L/H)in mm
    265/310/140
    330/312/170
    Weight
    7.2kg
    10kg
    Noise
    <25dB
    Operation temperature range
    -25ºC~+60ºC
    Heat dissipation mode
    Natural
    IP Class
    IP65
    Maximum altitude
    4000m
    Self-Consumption night
    <1w
    Topology
    Transformerless
    Features
    LCD display
    yes
    Communication interface
    WIFI/GPRS/RS485(optional)
    Warranty
    5 years (standard)
    Standards
    IEC62109-1,IEC62109-2,NB/T32004,VDE-AR-N4105,EN50549,AS 4777

    Note:Technical parameters listed hereunder are for reference only. Actual parameters shall be subject to products shipped.


    FAQ

    Q1. Can I have a sample order for solar products?
    A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
    On Grid Inverter New Series Home Use 1KW 3KW 5KW 8KW 10KW One Phase Grid-connected Solar Power Inverter High Efficiency Inverter
    Q2. What about the lead time?
    A: Sample needs 3-5 days, mass production needs 1-2 weeks for order quantity more than one container
    On Grid Inverter New Series Home Use 1KW 3KW 5KW 8KW 10KW One Phase Grid-connected Solar Power Inverter High Efficiency Inverter
    Q3: Are you a factory or a trading company?
    A: We are the factory with high production capacity and product range of solar products in China.
    On Grid Inverter New Series Home Use 1KW 3KW 5KW 8KW 10KW One Phase Grid-connected Solar Power Inverter High Efficiency Inverter
    Q4: How do you ship the goods and how long does it take to arrive?
    A: Sample shipped by DHL, UPS, FedEx, TNT, etc. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
