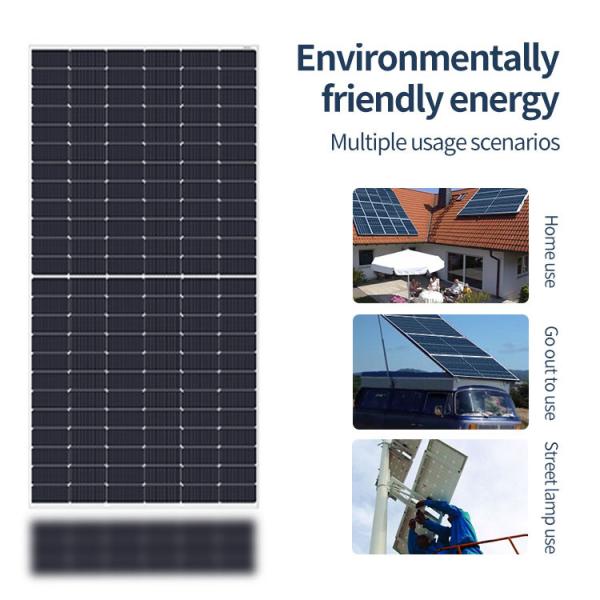

Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV

    Buy cheap Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV from wholesalers

    Buy cheap Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV from wholesalers
    • Buy cheap Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV from wholesalers
    • Buy cheap Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV from wholesalers
    • Buy cheap Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV from wholesalers

    Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV

    Ask Lasest Price
    Brand Name : Gospell
    Certification : CE TUV
    Price : US$0.7/watt
    Payment Terms : T/T, Western Union
    Supply Ability : 300000000 Watt/Watts per Month
    Delivery Time : 8-12 working days
    • Product Details
    • Company Profile

    Monocrystalline Silicon Photovoltaic Solar Panels 410W - 480W Single Glass TUV

    Gospell Solar 480 465 460 455 450 445 440 430 425 420 415 410 405 W Wp Single Glass TUV Monocrystalline Sun Pannelli Fotovoltaici Solar Panels


    5 BUSBAR HALF-CELLS

    HIGH OUTPUT POWER

    ANTI-PID CHARACTERISTICS

    lnnovative half-cutting celltechnology, lower internalcurrent, lower internalresistance lossOutput power is higher thanthe same type of conventional polycrystallinemodulesEnsure large-scale production ofhalf-cell polycrystalline modulespasS PID test

    HOT-SPOT EFFECT

    LOAD CAPACITY

    HARSH ENVIROMENT ADAPTATION

    Low hot-spot temperature,higher safety performanceCertified to withstand: windLoad (2400 Pascal) and snowLoad (5400 Pascal)High salt mist and ammonia resistancecertified by TUV NORD.

    Solar module features
    Multi Busbar Technology
    Better lighttrapping and current collection to improve,Effectively improvethe module's power output and reliability
    Higher output power
    Module output power increased to 505W
    Low light performance
    The special solar cell technology has excellentlow light power generationperformance.
    Better resistance to hot spots
    The use of half cell structure andspecial circuit design is lessshade loss, withbetter temperature coefficient and thermal spot resistance ability
    Adaptability to harsh environments
    High performance materials are suitable for coastal, farm, desert and otherharsh environmental conditions,glass surface is anti-reflective and easy toclean, minimizing powergeneration losses caused by dirt and dust.

    Product Paramenters


    325~350 PH-72 Half-Cell POLYCRYSTALLINE SILICON PV Modules Mechanical Data
    Cell Type156.75x78.375mm Poly
    Cell Orientation144(6×24)
    Module Dimensions1997×992×40mm
    Weight22.0kg
    Glass3.2mm high transmittance, reinforced glass
    BacksheetAnti-aging film
    Frame MaterialAnodized aluminum alloy
    Junction BoxProtection class IP67
    Cable4.0 mm2 photovoltaic special cable
    ConnectorMC4 compatible connector
    Modules Per Pallet27+27+4 pcs
    Modules Per 40'HQ Container638 pcs

    Product Description



    SYSTEM & PRODUCT CERTIFICATES·IEC 61215 /IEC 61730/IEC 61701/IEC 62716
    ISO 9001: 2015 Quality Management System
    ISO 14001: 2015 Environment Management System
    ISO 45001: 2018 Occupational Health and Safety Management Systems


    Electrical Data (STC)
    Maximum Power (Pmax/W)
    435
    440
    445
    450
    455
    Voltage at Maximum Power (Vmp/v)
    33.76
    33.91
    34.06
    34.21
    34.36
    Current at Maximum Power (Imp/A)
    12.89
    12.98
    13.07
    13.16
    13.25
    Open Circuit Voltage (Voc/M)
    40.80
    40.95
    41.10
    41.25
    41.40
    Short Circuit Current (Isc/A)
    13.34
    13.41
    13.52
    13.62
    13.72
    Module Efficiency (%)
    20.09
    20.33
    20.56
    20.79
    21.02
    STC(Standard Testing Conditions): lrradiance 1000W/m2, Cell Temperature 25*C,AM1.5

    Electrical Data (NMOT)
    Maximum Power (Pmax/w)
    326
    330
    334
    338
    342
    Voltage at Maximum Power (Vmp/M)
    31.19
    31.34
    31.49
    34.61
    31.79
    Current at Maximum Power (Imp/A)
    10.46
    10.54
    10.62
    10.69
    10.77
    Open Circuit Voltage (Voc/V)
    37.61
    37.76
    37.91
    38.06
    38.21
    Short Circuit Current (Isc/A)
    11.11
    11.19
    11.28
    11.36
    11.45
    NMOT (Nominal Moudule Operating Temperature): Iradiance 800W/m , Ambient Temperature 20'C,AM1.5, Wind Speed 1m/s.

    Temperature Coefficients
    Operating Parameters
    Temperature Coefficient(Pm)
    -0.350%ºC
    Maximum System voltage
    1000/1500v
    Temperature Coefficient(Voc)
    -0.270%ºC
    Operating Temperature
    -40ºC~+85ºC
    Temperature Coefficient(Isc)
    -0.048%ºC
    NMOT (Nominal MouduleOperating Temperature)
    41+3ºC
